China Cutting Wood T.C.T Saw Blade Carbide Tooth


Product Description


Product Name

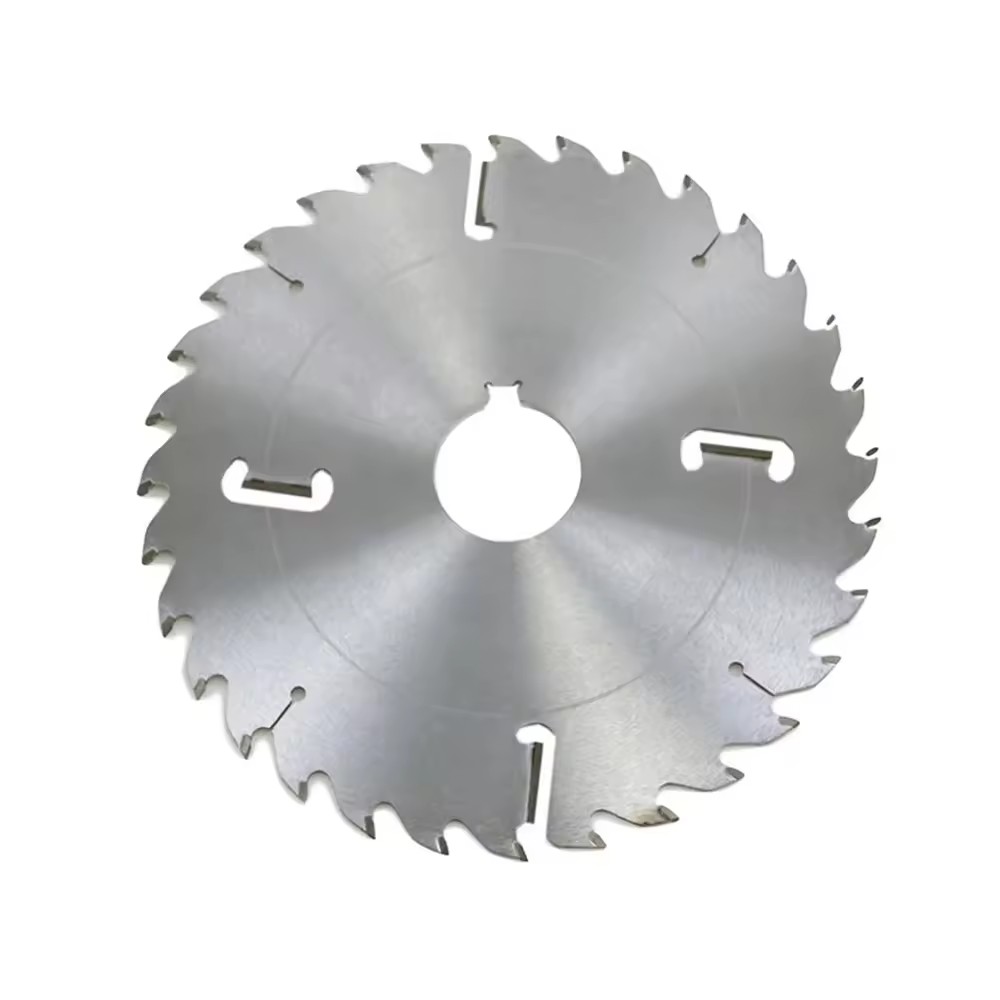

Multi Rip Saw Blade with Carbide Tipped Rakers Wipers Slot

for Soft and Raw Wood Ripping for Multi Rip Saws

Material

Teeth Material: Tungsten Carbide
Body Material: 75CR1/ SKS51 steel body

Teeth Type ATB Teeth with Rakers Wipers Slot  ( ATB TeethATBR TeethFT TeethTCG Teeth are available)
Arbor Hole Size 40mm/50mm/60mm

Rakers Number & Sizes

 From 2 to 4

125mm*20T to 500*40T

Package One piece in one PVC double blister, paper box or PVC Skin Card
Features

1.This TCT Circular saw blades are specially dedigned as Multi rip cutting blades. The blades are indicated for multiple cuts with single shaft or twin shaft machines of humind and nervy woods. The wiper-slots inserted in the body of the blade prevent the closure of the cut.

2.ATB (Alternating Top Bevel) offset tooth design, allowing the blade to cut alternately to the left and right, generating a more efficient and cleaner cut in all types of wood.

3.Tungsten carbide teeth provide excellent wear and heat resistance. positive cutting angle which provides fast and efficient removal of chips and swarf.

4.Fully hardened steel blade body – delivers accuracy and resists bending and deflection for true cuts.

5.Heat expansion slots allow the blade rim to expand and contract without warping for straight and accurate cuts.

 UV Print Technology for Saw Blade



 Product Size



Multi Rip TCT Circular Saw Blade with Carbide Tipped Rakers Wipers Slot for Soft and Raw Wood Ripping for Multi Rip Saws
